• Fabricated modular rugged construction
• Superior COP values at full and part load operation
• Low on total cost of ownership: Capital cost, operating cost, maintenance cost
• Easy site maintenance and troubleshooting
• Low vibration and noise level
• CE approved

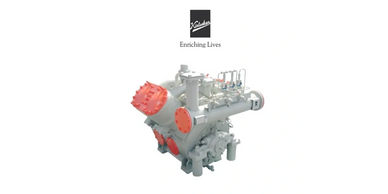

• Open type, 1 to 12 cylinder, single / two stage reciprocating compressor
• Bore / Stroke: 160 mm / 110 mm.
• Swept Volume: From 265.4 Cubic meter per hr To 1327.0 Cubic meter per hr(at 1000 rpm)
• Refrigerant: R-22, R134a, R-717 (NH3) & other HFC's (Ozone friendly refrigerant)

• Food processing & preservation: cold storage, milk / ice-cream, fish / meat, breweries & beverages vegetable & agro products,
• Chemical, pharmaceuticals & process refrigeration
• Other industrial refrigeration applicationn

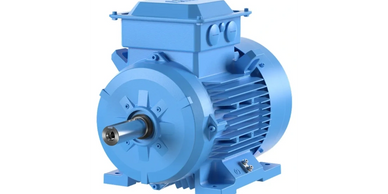

ABB Make Induction motor : electric motor for  reciprocating compressor, all technical details has been given below.

A.  Make - ABB / Kirloskar

B. Generation IE-1, IE -2,IE-3, IE-4

C. Type TEFC

D. Mounting option foot

E. Terminal box position   top

F. Body cast iron

G. Enclosure  IP55

H. Insulation class F

I. Temperature rise class B

J. Color gentian blue (RAL 5010 ) if available

K. Pole  6

L. Voltage 400 V/AC

M. Frequency 50 Hz

N. Ambient temperature  -20°C to +50 °C

O. Altitude 1000 M

Product Description

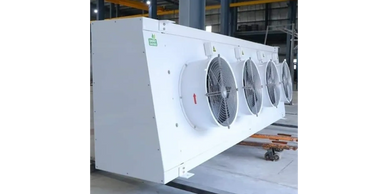

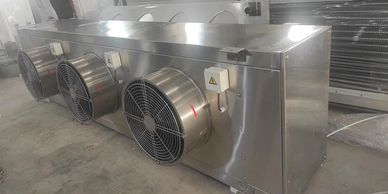

AMMONIA AIR COOLING UNIT

 Model RCE-1100/3/710

 Refrigeration  Capacity  : 3TR to 25TR

 Basic Parameter of Unit Selection :

  Room Temp.             :  0- 2 degree  C

  Evaporating  Temp. :  -3 degree C

  Delta Temp. ( TD)     :   5 degree

  Fan & Motor details :

 Fan                 :  1 to 6 fans

 Fan Size          : 240mm to 710mm

 Power              : ,37kw to .75kw

 Speed              : 1440 RPM

Insulation        :  IP 55

Air Flow Rate   : 5000 to 60000 CMH

Air Velocity      : 7.450m/s

Voltage            : 3-400v50hz

Room Temp. 0 to 2 degree Ammonia/ Freon

Unit Capacity 4 Fans :  13.5 TR Per Unit

Flow Rate of ref.        :   .082kg/s

Pressure Drop            :  15.698 pa

Tube & Fins Details:

Tube Material                  :  Stainless Steal 304L

Internal Volume               :  72.73 lt.

Nos. of Circuits                :  12

Tube Pitch Type               :  Triangular

Fin Material                     :  Aluminium

Fin Type                           : Sine wave plate type

Fin Pitch                          : 6mm

Surface area                     : 308sq. mt.

Heat Transfer coeff. Air side    : 126.5w/m2k

Heat Transfer coeff. Ref. side   : 1354w/m2k

Overall heat transfer coeff.      :  40.97w/m2k

We offer energy-efficient commercial refrigeration systems that help you save on energy costs while also being eco-friendly. Our systems are designed to consume less energy but ensure maximum output, enabling you to save on energy bills.

We believe in providing quality services at affordable prices. Our pricing is competitive, and we offer flexible payment options to help you manage your budget effectively. Contact us today to get a quote.

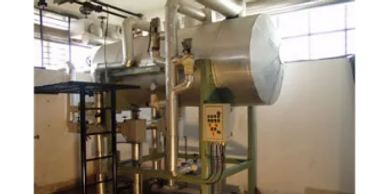

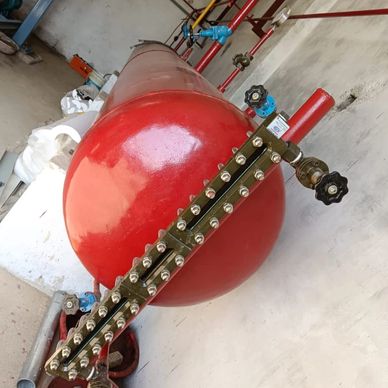

A. Refrigerant  ammonia

B. Metal mild steel

C. Grade SAIL IS-2062

D. Size 48” x 12’

E. Sheet thickness  18 mm

F. Dish end thickness 18 mm

G. Connection size  100 mm

H. Drain size  20 mm

I. Hydraulic test 400 psi

J. Air test 300 psi

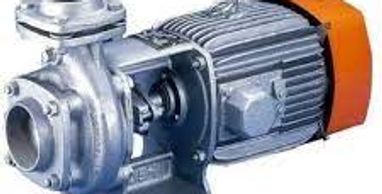

K. Ammonia pump (1w+1SB)  7.5HP (1+1)2 no’s

a. Make    Hydro dyne

b. Type canned

c. Deliver head  30 M

d. Ammonia volume 30 M3/hour

L. Ammonia controls

a. Ammonia wieldable valve 1 ¼ “ 3 no’s

b. Ammonia expansion valve 1 ¼ “ 1 no.

c. Ammonia line strainer 1 ¼ “ 1 no.

d. Ammonia line strainer 3” 2 no’s

e. Ammonia NRV 2” 2 no’s

f. Solenoid valve  1 ¼ “ 1 no.

g. Ammonia safety valve 150 psi 1 no.

h. Ammonia level controller  2 no’s

i. Pressure gauge 150 psi 1 no.

Oil collector  1 no.

PRODUCT  FEATURES

• Fabricated SAIL Make IS-2062 Grade construction
• Disc End 18MM both side
• Low on total cost of ownership: Capital cost, operating cost, maintenance cost
• HPR 20 feet length only single joint maintenance and trouble shooting
• Product metal Certificate

• Food processing & preservation: cold storage, milk / ice-cream, fish / meat, breweries & beverages vegetable & agro products,
• Chemical, pharmaceuticals & process refrigeration
• Other industrial refrigeration applications

Our team of experts can help you with the installation and replacement of commercial refrigeration systems. We offer a wide range of options to choose from and can recommend the best system that suits your business needs and budget.

We understand that breakdowns can happen at any time, which is why we offer 24/7 emergency services. Our team is always available to fix your system at any time of the day or night, ensuring that your business operations are not halted for long.

We offer energy-efficient commercial refrigeration systems that help you save on energy costs while also being eco-friendly.

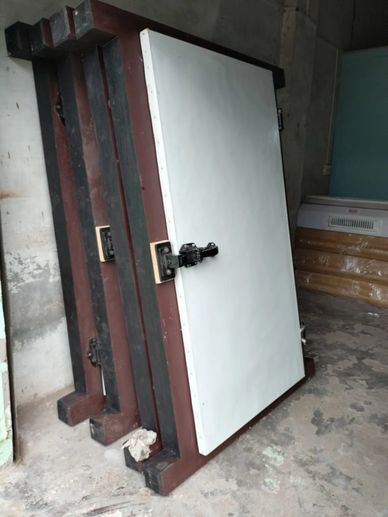

Cold Storage Doors & Window
